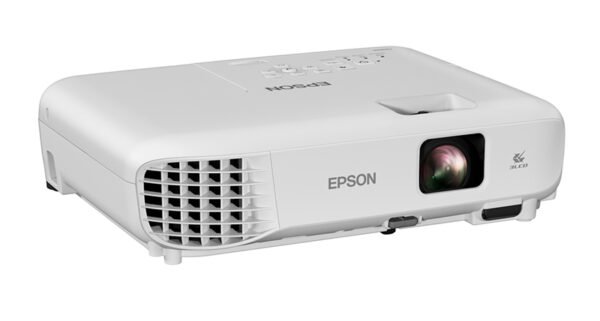

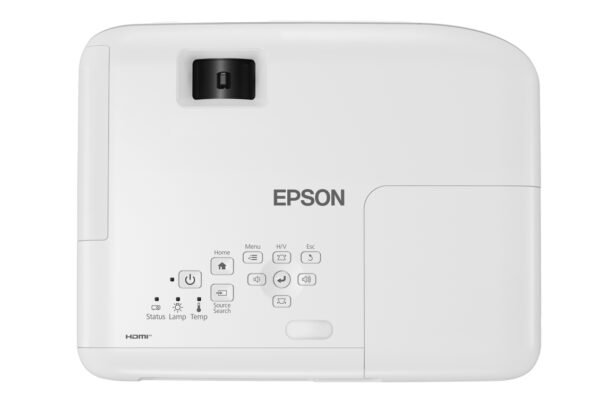

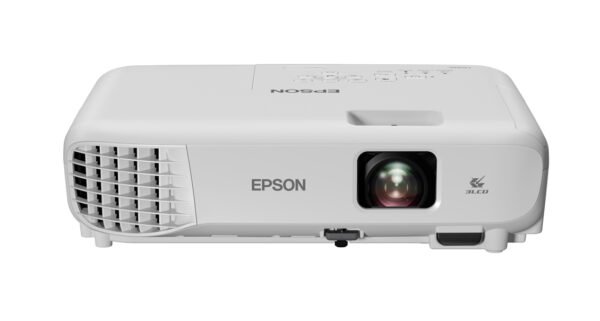

Epson EB-W53 Projector

🔧 Core Specifications

• Model Code: V11HB57040
• Projection System: Epson 3LCD Technology
• Native Resolution: WXGA (1280 × 800)
• Brightness: 4,000 lumens (White & Color Light Output)
• Contrast Ratio: Up to 16,000:1
• Aspect Ratio: 16:10 native (supports 4:3 and 16:9)
• Keystone Correction: Vertical ±30°, Horizontal ±30°
• Zoom Ratio: Manual zoom (1.2x)
• Throw Ratio: 1.30 – 1.56

🎨 Image & Display

• Projection Size: 30″ to 300″
• Projection Distance: 0.9 m – 10.8 m
• Lamp Life:
  • Up to 6,000 hours (Normal Mode)
  • Up to 12,000 hours (Eco Mode)
• Color Reproduction: Up to 1.07 billion colors

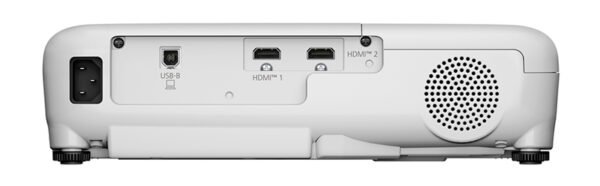

🔌 Connectivity Interfaces

• HDMI: 2 × HDMI ports (HDCP supported)
• USB:
  • 1 × USB Type-A (for wireless LAN and firmware updates)
  • 1 × USB Type-B (for PC projection via USB cable)
• Wireless LAN: Built-in (IEEE 802.11 b/g/n)
• Audio Out: 1 × Stereo mini jack
• Computer In: 1 × D-sub 15-pin (VGA)
• Video In: 1 × RCA (Yellow)
• RS-232C: 1 × D-sub 9-pin

🔉 Audio & Control

• Built-in Speaker: 2W mono
• Remote Control: Full-function remote included (with batteries)
• Control Options: RS-232C, USB, LAN

🌍 Environmental & Power

• Power Supply: 100 – 240 V AC, 50/60 Hz
• Power Consumption:
  • 345 W (Normal Mode)
  • 235 W (Eco Mode)
  • 2.0 W (Standby Mode)
• Operating Temperature: 5°C – 35°C

📦 What’s in the Box

• • Epson EB-W53 projector (main unit)
  • Power cable
  • Remote control with batteries
  • HDMI cable
  • Quick setup guide
